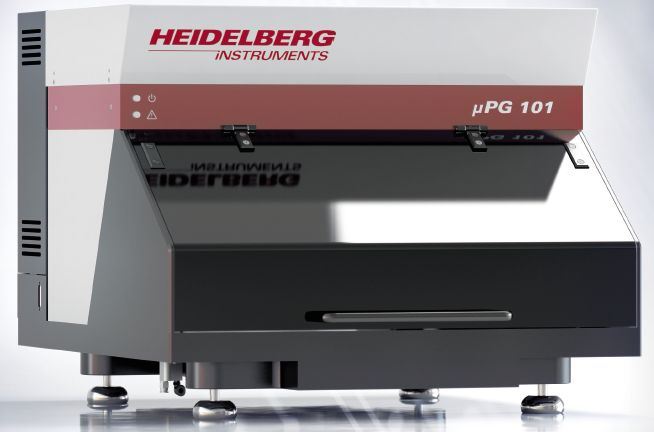

Direct Write Laser Lithography (Heidelberg uPG 101)

Technical Details

Write Mode

Mode I II IV
Minimum Structure Size [μm] 0.6 1 5
Write Speed [mm2 /minute] 1 5 90
Address Grid [nm] 20 40 200
Edge Roughness [3σ,nm] 100 120 400
Line Width Uniformity [3σ,nm] 150 200 800
Aligment Measurement Accuracy [3σ,nm] 200 200 800

 Substrates up to 6“ x 6“

Structures down to 0.6 μm

Applications and Devices fabricated
