Facilities - Equipements

Our plateform offers the technical capabilities needed to cover a wide range of projects in nanosciences, micro and nano technologies

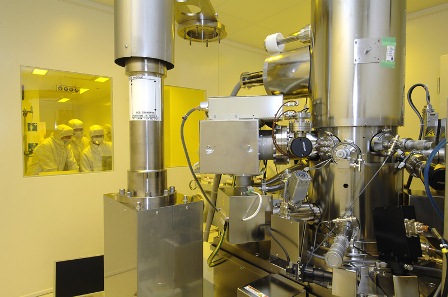

E-beam Lithography Tool (JEOL 6300FS)

Technical Details

  • Gun TFE electron beam source 100kV with 2 modes (High speed or High resolution)
  • Laser control for the stage λ/1024 =0.62nm.
  • Maximum frequency : 12MHz
  • Field Stitching <20nm
  • Alignment if using full correction <15nm
  • Height measurement on the sample
  • Sample 5x5mm to 8’’ wafers (maximum writing area on 6’’)
  • Autoloader with 10 cassettes
  • Ré-alignment

Positive resist

PMMA4% 950K, PMMA2% 950K, PMMA4% 200K

PMMA/MMA (for bilayer),ZEP520A or UV5-0.6)

Negative resist

XR-1541-004, Man2410 or NEB22A2

with a resolution in the resist less of 10nm.

The best resolution after a lift-off of Ni is around of 13nm.

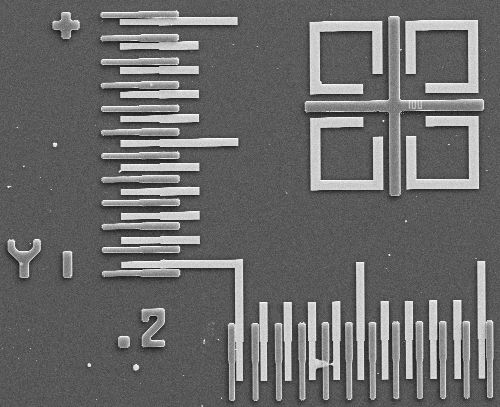

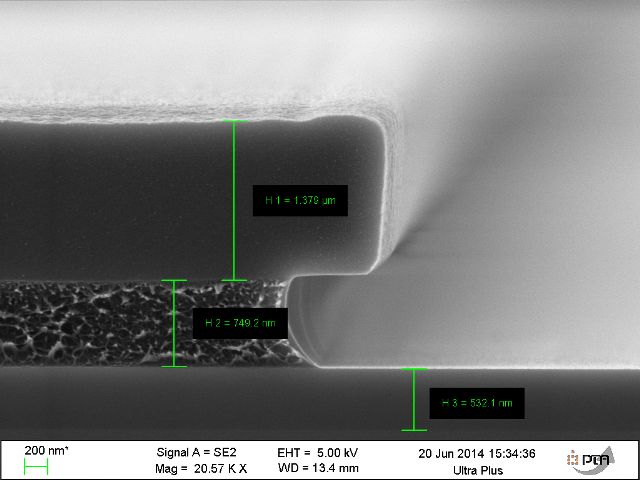

Applications and Devices fabricated
